HPV – Ring Valve (for high pressure / single ring)
For use under difficult conditions
Superior efficiency and temperatureresistance for small-diameter valves
The HOERBIGER HPV, High-pressure Profiled Ring Valve, is especially designed for use under difficult conditions. Whether high pressure hydrogen, noble gases, bio-gas, CNG, hydrocarbons – the HPV valve covers most requirements of the chemical, pharmaceuticals and electronics industries and of renewable energy providers.
The wide range of applications includes reciprocating as well as diaphragm compressors. The HPV valve is the best choice for compressors with high-pressure ratios, high discharge temperatures and non-lube operation.
HOERBIGER HPV valve is characterized by low clearance volume and enables economical compressor design.

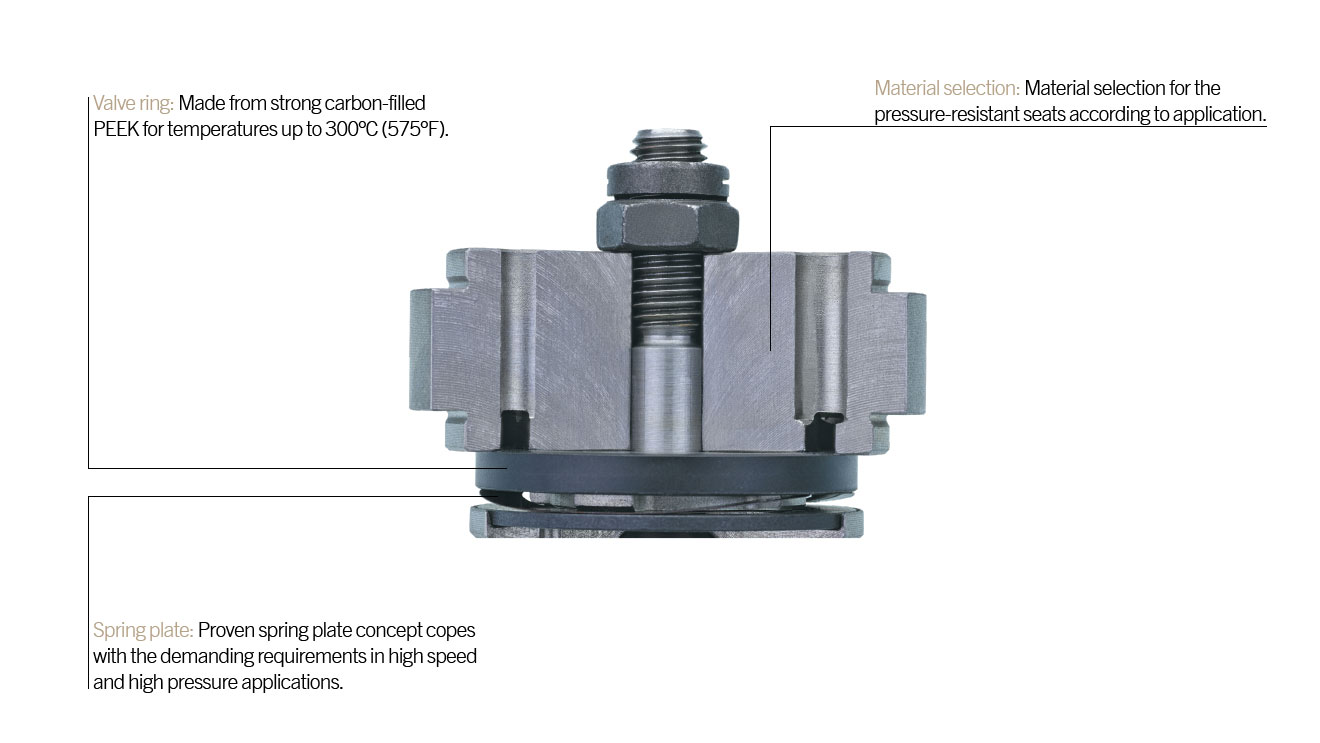

HPV valves support maximum pressures and difficult conditions
The profiled valve ring made from high-strength, high-temperature-carbon-filled PEEK stands out thanks to its extreme temperature and excellent impact resistance.
The HPV valve is specially designed to cope with medium and high pressures in confined mounting spaces.
Your benefits at a glance
| Feature | Advantage | Benefit |
|---|---|---|
| Profiled ring design | Industry benchmark in efficiency for high-pressure valves: Superior efficiency even at low lift |
Long life and high compressor uptime |
| Carbon fiber reinforced high- uptime temperature PEEK | ||
| Low clearance volume | Enables high compression ratios Suitable for high discharge temperatures | Cost-effective compressor design |
| High-temperature valve ring | ||
| Spring plate made of high purity steel with super-fine surface finish | Designed for high dynamic loads in highpressure and high-speed compressors | Excellent reliability |
| Hydrogen-compatible material Tribological optimization | Resistance to hydrogen embrittlement Suitable for non-lube compression | Long life and safe operation in high pressure H2 compression |
| Industry benchmark in efficiency Tribological optimization Robust spring plate | Replace wear parts less frequently | Lower maintenance costs Reduced driver power Savings in CO2 emissions |
| Reduce main driver energy costs |
- Wide range of applications
- Low flow losses
- Non-metallic profiled ring with good damping properties and contoured seat for optimized flow-geometry
- Excellent field experience with over 50 installations worldwide
- Temperature resistant up to 300°C (572°F)
- Reduced compressor footprint and improved package cost-effectiveness
- Compressor speed:
- 1800 rpm maximum
- Maximum pressure:
- 800 bar
- Differential pressure:
- 400 bar
- Temperature range:
- -20°C (-4°F) to +300°C (+575°F) maximum
- Valve type diameter:
- 19 mm (¾inch) to 57 mm (2¼inch)
